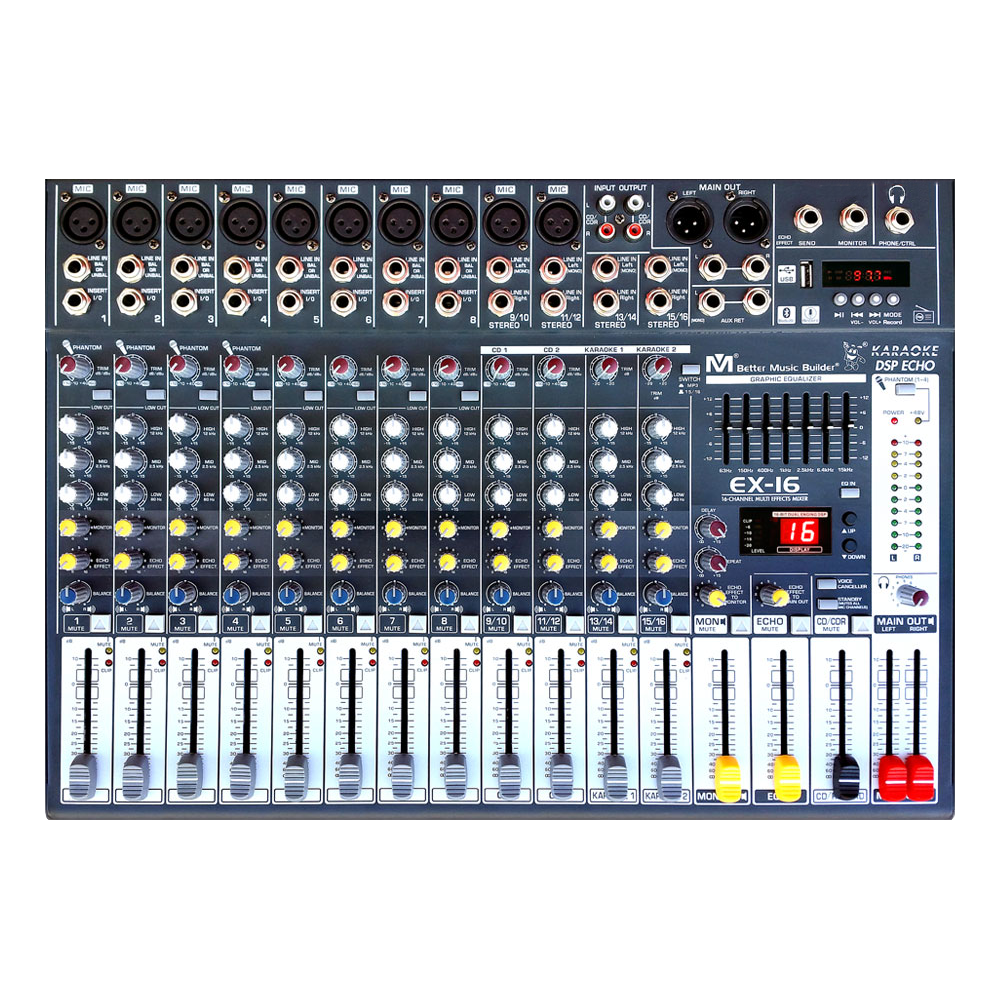

Better Music Builder EX-16 16-Channel Professional DJ / KJ Audio Mixer

New to Better Music Builder the EX-8/EX-16 Professional Audio Mixer, perfect for the audio enthusiast and home entertainment experts.

With 8-Channel/16-Channel, the EX Series mixer brings studio quality equipment to your living room. Now multiple audio sources including your home entertainment system can be controlled all in one station. This professional audio mixer has echo effects that can be controlled independently to each channel, effectively making selection possible when multiple microphones are connected. Apart from the standard audio inputs the EX-8/EX-16 Multi-Effect Mixer has a selectable USB, FM/Radio, and bluetooth integrated into the mixer, making it an essential tool for any party or event.

The EX-8 and EX-16 Mixers have phantom powered microphone inputs. This is a unique feature that is used whenever you want the best recreation of you vocal audio from the system. When using a phantom powered microphone, you will need to activate the phantom power button in order to operate properly.

Adding to the above features the mixer also provides auxiliary outputs and returns in order to connect an audio effects processor, from there each channel can be set to provide the effects given. This makes it possible to provide audio effects to one microphone while another plays unprocessed/effected audio.

Features:

• 16-Channel; fully adjustable
• Phantom Power (P48) for condenser microphones
• Echo Effects controls: Delay, Repeat
• Bluetooth Enabled to connect to smart phone
• Integrated FM Radio with auto-scan feature
• USB interface for recording and playing digital music file
• Channels 1 to 8 Mono Microphone Plugs
• Channels 9 to 16 Stereo Audio Inputs
• Left & Right Master control faders
• Gain Control for each channel
• 7 Band equalizer to Main Out
• Headphone Jack with independent volume control
• Effects Send to audio processor
• Aux Return from audio processor
• Mute Switches allow each channel to be muted
• Audio Balance on each channel, perfect for a theatrical effect when using instruments
• Low Cut switch restricts lower frequencies from the selected channels
• Trim Control to set the appropriate “gain” to each channel

Tech Specs:

• MICROPHONE INPUTS
  • Type: XLR, electronically balanced, discrete input circuit
  • MIC E.I.N. (20 Hz – 20 kHz)
    • Distortion (THD+N): 0.005% / 0.004% A-weighted
    • Signal-to-noise Ratio: 110 dB / 112 dB A-weighted (0 dBu In @ +22 dB gain)
    • Impedance: approx. 2.6 kΩ balanced
    • Max. Input Level: +12 dBu @ +10 dB Gain
    • Gain Range: +10 to +60 dB
    • Frequency Response: <10 Hz ~ 150 kHz (-1 dB), <10 Hz ~ 200 kHz (-3 dB)
    • @ 150 Ω source resistance: -129 dB / 130.5 dB A-weighted
    • @ 50 Ω source resistance: -131 dB / 133.3 dB A-weighted
    • @ 0 Ω source resistance: -134 dB / 135.7 dB A-weighted
  • LINE INPUT
    • Type: ¼”TRS connector, electronically balanced
    • Impedance: approx. 20 kΩ balanced, 10 kΩ unbalanced
    • Gain Range: -10 to +40 dB
    • Max. Input Level: 30 dBu
• FADE-OUT ATTENUATION¹  (CROSSTALK ATTENUATION)
  • Main Fader Closed: 90 dB
  • Channel Muted: 89 dB
  • Channel Fader Closed: 89 dB
• FREQUENCY RESPONSE
  • MICROPHONE INPUT TO MAIN OUT
    • <10 Hz ~ 90 kHz: +0 dB / -1 dB
    • <10 Hz ~ 160 kHz: +0 dB / -3 dB
  • STEREO INPUTS
    • Type: ¼”TRS connector, electronically balanced
    • Impedance: approx. 20 kΩ balanced
    • Max. Input Level: +22 dBu
  • EQ MONO CHANNELS
    • Low: 80 Hz / ±15 dB
    • Mid: 100 Hz ~ 8 kHz / ±15 dB
    • High: 12 kHz / ±15 dB
  • EQ STEREO CHANNELS
    • Low: 80 Hz / ±15 dB
    • Low Mid: 500 Hz / ±15 dB
    • High Mid: 3 kHz / ±15 dB
    • High: 12 kHz / ±15 dB
  • AUX SENDS
    • Type: ¼”TS connector, unbalanced
    • Impedance: approx. 120 Ω
    • Max. Input Level: +22 dBu
  • STEREO AUX RETURNS
    • Type: ¼” TRS connector, electronically balanced
    • Impedance: approx. 20 kΩ bal. / 10 kΩ unbal.
    • Max. Input Level: +22 dBu
  • MAIN OUTPUTS
    • Type: XLR, electronically balanced and ¼” TRS balanced
    • Impedance: approx. 240 Ω symm. / 120 Ω unbalanced
    • Max. Output Level: +28 dBu, +22 dBu
  • CONTROL ROOM OUTPUTS
    • Type: ¼”TS connector, unbalanced
    • Impedance: approx. 120 Ω
    • Max. Input Level: +22 dBu
  • HEADPHONES OUTPUTS
    • Type: ¼”TS connector, unbalanced
    • Impedance: +19 dBu / 150 Ω (+25 dBm)
• DSP
  • Converter: 24-bit Sigma-Delta, 64/128-times oversampling
  • Sampling Rate: 40 kHz
• MAIN MIX SYSTEM DATA²
  • NOISE
    • Main Mix @ –00, Channel Fader @ –00: -101 dB, -100 dB
    • Main Mix @ 0 dB, Channel Fader @ –00: -93 dB, -96 dB, -87 dB
    • Main Mix @ 0 dB, Channel Fader @ 0 dB: -81 dB, -83 dB, -80 dB

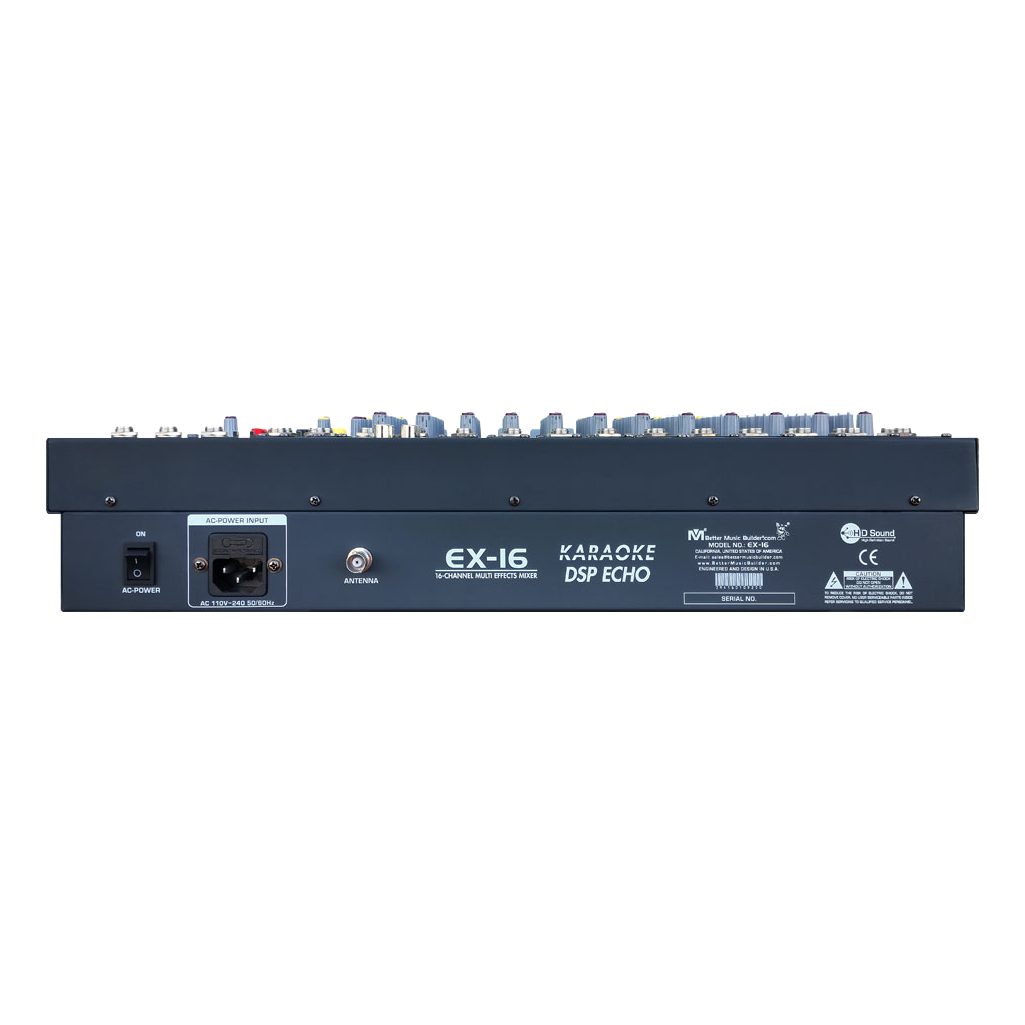

  • POWER SUPPLY
    • Main Voltage: 110V~240V, 50/60 Hz
    • Power Consumption: 50W
    • Fuse: T 1.6 A H 250 V
    • Main Connection: Standard IEC receptacle
• Dimensions (WxHxD): 18.3 x 3.5 x 13.2 in / 46.5 x 9 x 33.5 cm
• Packing Dimensions (WxHxD): 21.5 x 6.6 x 16.3 in / 54.5 x 16.8 x 41.5 cm
• Net Weight: 11 Lbs / 5 Kg
• Shipping Weight: 13.2 Lbs / 6 Kg
• UPC Code: 743062981183
